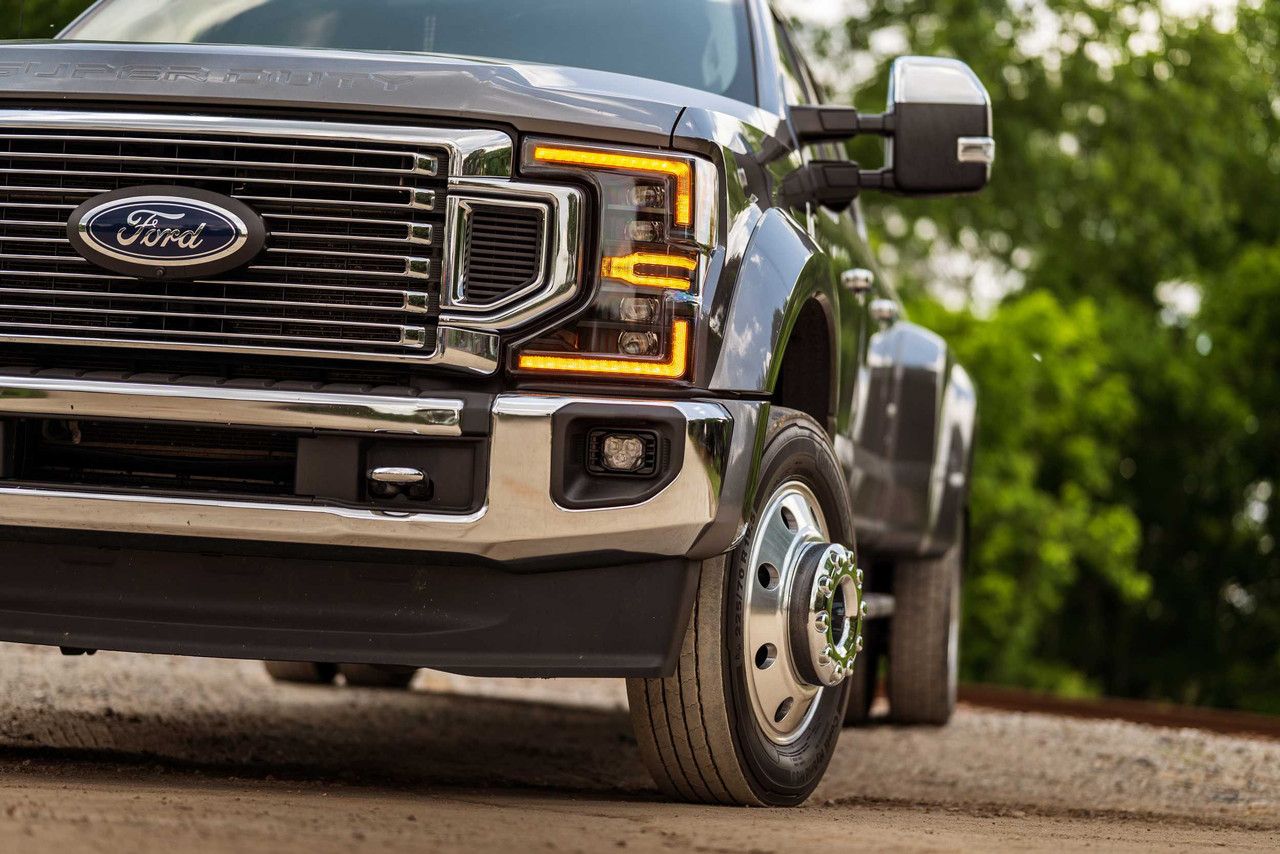

Installing a new set of Morimoto XB LED headlights is one of the best ways to improve the look and performance of your vehicle’s lighting system. These headlights are designed as direct replacements for factory units, delivering a modern appearance and significantly improved nighttime visibility.
However, after installation, one critical step remains: properly aiming the headlights.
Adjustments for the Perfect Beam Pattern
Morimoto XB headlights include built-in vertical and horizontal adjustment mechanisms that allow you to fine-tune the beam pattern. Understanding how these adjusters work ensures you get the best possible performance from your new headlights while avoiding glare for oncoming drivers.
In this guide, we’ll break down how these adjustment systems work and how to correctly align your headlights.
How Morimoto XB Headlight Adjusters Work
Most Morimoto XB LED headlights feature adjustment screws located on the rear of the headlight housing. These screws connect to a small internal gear mechanism that moves the projector lens assembly inside the headlight.
Turning the adjustment screw moves the projector slightly, changing the direction of the light beam.
There are two types of adjustments:
-
Vertical adjustment – controls beam height
-
Horizontal adjustment – controls beam direction
Not every application includes both adjusters, but many Morimoto XB headlights allow for both vertical and horizontal tuning depending on the vehicle platform.
Vertical Adjustment (Up and Down)
The vertical adjuster is the most important alignment control. It determines how high or low the headlight beam shines on the road.
If the headlights are aimed too high, they can blind other drivers. If they are aimed too low, you lose valuable forward visibility.
The vertical adjustment screw typically sits on the top or rear of the headlight housing and can usually be turned using a Phillips screwdriver or socket.
When you turn the adjuster:
-
Turning one direction raises the beam
-
Turning the other lowers it
You’ll see the sharp cutoff line of the projector beam move up or down on a wall as you make adjustments.
Horizontal Adjustment (Left and Right)
Some Morimoto XB headlights also include a horizontal adjuster, which allows the beam to move left or right.
This adjustment helps:
-
center the beam pattern in front of the vehicle
-
align both headlights evenly
-
ensure the light is directed straight down the road
Horizontal adjustment screws are typically located near the vertical adjuster but may vary depending on the headlight model.
While horizontal adjustment is less common in many OEM-style replacement headlights, Morimoto includes this feature on several XB headlight models for precise beam alignment.
How to Aim Morimoto XB LED Headlights
Step-by-Step Alignment
-
Park your vehicle on level ground about 25 feet from a wall or garage door.
-
Measure the distance from the ground to the center of the headlight projector.
-
Place a piece of tape on the wall at that same height.
-
Turn on the headlights.
-
Adjust the vertical screw until the top of the beam cutoff sits slightly below the tape line.
This ensures the headlights illuminate the road ahead without creating glare for other drivers.
Where to Find the Adjustment Screws
On most Morimoto XB headlights, the adjusters are accessible while the headlights are installed.
You can typically reach them from:
-
the top of the headlight assembly
-
the engine bay area
-
sometimes through a service opening in the mounting bracket
Because Morimoto designs their headlights as OEM-style replacements, the adjuster positions are often similar to the factory headlights they replace.
Why Proper Headlight Alignment Matters
Even the best headlights won’t perform properly if they aren’t aimed correctly.
Misaligned headlights can cause several problems:
-
reduced forward visibility
-
glare for oncoming traffic
-
uneven lighting across the road
Taking a few minutes to properly aim your headlights ensures you get the full performance benefits of Morimoto XB LED headlights.
When properly aligned, these headlights deliver:
-
a sharp projector cutoff line
-
improved distance visibility
-
better illumination across the road
Final Thoughts
Morimoto XB LED headlights are engineered to deliver outstanding lighting performance right out of the box. However, adjusting the beam pattern after installation is an essential step to ensure optimal visibility and safe operation.
By understanding how the vertical and horizontal adjusters work, you can quickly fine-tune your headlights and enjoy the full benefits of your lighting upgrade.
Whether you’re upgrading your truck, SUV, or daily driver, properly aligned headlights make nighttime driving safer, clearer, and far more comfortable.
