Opening a factory headlight assembly is the first real hurdle for anyone jumping into a retrofit project, and it can feel intimidating the first time you do it. The good news is that most modern headlights are sealed with butyl rubber, a heat-sensitive adhesive that softens when warmed. That means with nothing more than an oven, a screwdriver, and a little patience, you can separate the two halves cleanly and get access to the reflector, projectors, and trim inside. In this guide we walk through exactly how we do it on the bench, covering baking and opening headlight assemblies step by step so you can get started with confidence.
Before You Start: Get Your Workspace Ready
Once you have the headlights off the car, the disassembly process begins on the bench, not in the oven. The very first thing we do is lay down a soft surface. Headlight lenses scratch easily, and there is nothing worse than getting all the way through a retrofit only to find a scuff on the clear lens. A towel, a foam mat, or even a folded blanket works fine. The goal is simply to keep the lens face protected while you handle and flip the assembly around during teardown.
Take a minute to organize your space too. You are going to be removing hardware, and you will need every screw and cap when it comes time to reassemble everything. A clean, uncluttered bench makes the whole job go smoother and keeps small parts from disappearing.
Step 1: Remove All External Hardware
Screws, Rubber Caps, and Brackets

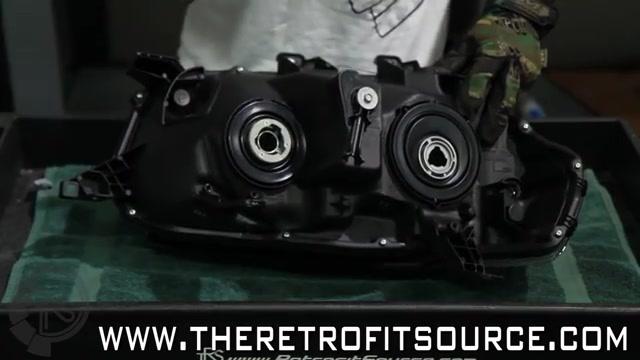

Before the headlight ever goes near the oven, you need to strip off everything on the outside. In general there are a lot of screws that surround the outside edge of the headlight. Remove any of those you find, because leaving them in place makes it far harder (and sometimes impossible) to lift the lens off later. Work your way all the way around the perimeter and do not skip any.
Beyond the perimeter screws, there are usually a couple of rubber caps on the back of the headlight, and sometimes an extra bracket or two. You want to remove all of this stuff before you put the assembly in the oven to bake it. Anything left attached can get in the way, trap heat unevenly, or simply complicate the prying process once the seal softens.
Keep Everything Organized

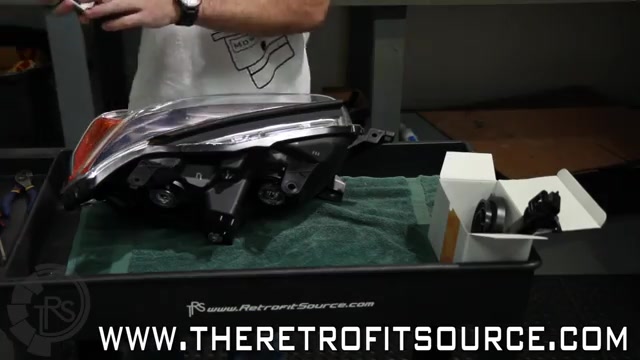

Once you have everything off the back of the headlight, put it away off to the side. We usually just use one of the boxes the projectors came in to keep everything nice and organized. You are going to need all of this hardware when you go to reassemble the headlight later, so a dedicated tray or box saves you a real headache down the road. Trust us, hunting for a single missing screw at reassembly time is not how you want to spend an evening.
Step 2: Bake the Headlight to Soften the Butyl Seal
Now for the part that makes everyone nervous the first time: putting a headlight in your oven. Butyl rubber is designed to grip hard at room temperature but release when heated, and that property is exactly what we take advantage of here. Set a timer for 7 minutes and place the headlight into an oven at 270 degrees Fahrenheit. That is the combination we use, and it reliably softens the seal without cooking the plastic.
A few practical notes from the bench. Preheat the oven fully before the headlight goes in so your 7 minutes is at true temperature. Keep an eye on the timer, because leaving the assembly in longer than needed is where you risk warping. When the timer goes off, pull it out and get to work right away while the butyl is still warm and pliable. The seal firms back up quickly as it cools, so time is your friend at this stage.
Step 3: Pry the Housing Apart
We just got the headlight out of the oven after that 270 degree, 7 minute bake, and now we start prying it apart. The tool for this is simple: just use one flat blade screwdriver. It is generally easier to start on a corner, so that is where we begin. Wedge the screwdriver in there, get it in between the two halves, and start prying gently.
Here is something that surprises a lot of first timers: it is okay if the plastic deforms a little bit. You can always bend that back later. The housing flanges are flexible when warm, and a bit of temporary flex is completely normal as the butyl releases its grip. Get the screwdriver seated in the gap, then grab the assembly with both hands and work your way around the edge, easing the two halves apart section by section.
If you would rather not risk marring the plastic with a metal screwdriver, a dedicated tool makes this cleaner. We keep a professional headlight pry tool on the bench for exactly this reason, since its shaped edge slides into the seam without gouging the flanges.
Step 4: Separate the Halves and Protect the Lens
Once you have worked your way around, the two halves of the housing come apart. Usually the glue is a little bit stringy as they separate, and that is completely okay. That stringy butyl is a sign the bake worked and the adhesive released properly rather than tearing the plastic. Pull the halves apart slowly so the strands stretch and break cleanly rather than snapping the lens away suddenly.
The moment the lens comes free, get it to a safe spot. Put the lens off to the side and make sure there is no dust that is going to get on it, because it is going to be really hard to clean if any settles inside. Dust that lands on the inner surface of a lens is a nightmare to remove once the housing is sealed back up, so treat this as the critical step it is. Set the lens somewhere clean and, ideally, cover it while you work on the rest of the assembly.
A Good Time to Handle Trim and Painting
With the housing open, this is also a great opportunity to tackle any trim work. If you want to paint the trim like we are going to do, you can usually just take it off with the screws that hold it in place. Everything is easily accessible right now, so it is the natural moment to pull those pieces before you move on. Painting trim while the assembly is open means you avoid masking around an intact lens later.
Step 5: Move On to the Reflector

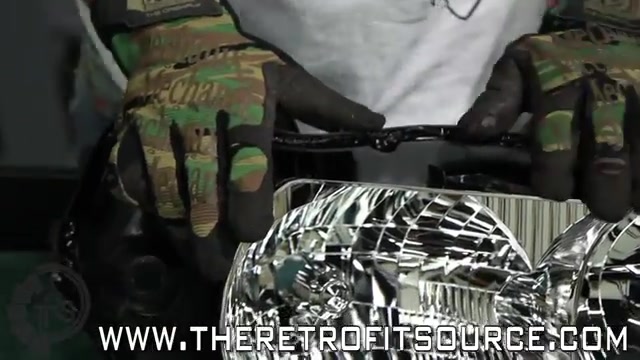

With the lens safely set aside, we can get started by taking off the reflector from the housing. This is where the real customization begins, whether you are installing projectors, swapping in a fresh reflector, or adding halos. The teardown you just completed is the gateway to all of it.
If your project involves adding accent lighting, a complete LED halo installation kit gives you the wiring and components to do it right once the housing is open. And if you want to see how this teardown feeds into a full build, our 370Z headlight lens replacement and halo install guide walks through the process from open housing to finished product on a specific vehicle.
Preparing for Reassembly
Getting the headlight open is only half the battle. When it comes time to seal everything back up, the old butyl may not be enough, especially if it stretched thin or picked up debris during teardown. We recommend fresh sealant for a clean, weather tight bond. The Morimoto RetroRubber Butyl Glue is what we reach for on the bench, and you can also find Morimoto’s OEM-style butyl sealant at Morimoto HID if you need another source.
To hold the two halves tight while the fresh butyl cures, a set of clips keeps even pressure across the seam. We use Morimoto Compression Clips for headlight housings so the seal sets evenly around the entire perimeter without gaps. Between fresh sealant, compression clips, and the organized hardware you set aside earlier, reassembly becomes the straightforward reverse of everything you just did.
Final Thoughts
Baking and opening headlight assemblies is one of those skills that looks scary but turns out to be genuinely simple once you have done it once. Protect the lens on a soft surface, remove every screw, cap, and bracket, bake at 270 degrees Fahrenheit for 7 minutes, and patiently pry from a corner with a flat blade screwdriver. Expect a little plastic flex and some stringy glue, keep the lens dust free, and you will have your housing open and ready for whatever build you have planned. Take your time, stay organized, and the reassembly will thank you later.
Frequently Asked Questions
What temperature and time should I use to bake a headlight for disassembly?
The transcript specifies baking the headlight in an oven at 270 degrees Fahrenheit for 7 minutes.
What should I remove before baking the headlight?
Remove all screws around the outside edge of the headlight, any rubber caps on the back, and any extra brackets before placing it in the oven.
What tool is used to pry the headlight housing apart?
A single flat blade screwdriver is used, starting at a corner of the housing to separate the two halves.
Is it normal for the housing to deform slightly when prying it open?
Yes, the transcript notes it is okay if the plastic deforms a little since it can be bent back later.
How should the lens be handled after separating the housing?
The lens should be placed off to the side in a clean area to prevent dust from getting on it, since dust is hard to clean once inside.
