If you’ve been running the original Morimoto XB headlights on your truck or car, you already know how much of an improvement they were over stock. They delivered a clean beam pattern, solid brightness, and a modern look that turned heads. So when Morimoto launched the XB Evo lineup, the natural question was whether the upgrade is actually worth it, or if this is just a refresh with a higher price tag.
After spending considerable time comparing the two generations across several popular vehicles, we can say with confidence that the XB Evo represents a genuine leap forward in every measurable category. This isn’t just a cosmetic update. Here’s what you need to know before deciding whether to make the switch.
The Core Difference: All-New Projector Technology
At the heart of every headlight is its projector, and this is where the XB Evo makes its biggest statement. The original XB headlights used capable bi-LED projectors that were impressive for their time. However, the XB Evo features an entirely new generation of Type 1 bi-LED projectors designed from scratch by Morimoto’s lead optical engineer in California. These new projectors are powered by the latest automotive-grade Nichia LEDs from Japan and deliver substantially more light output with better distribution.
Here’s the part that might surprise you: these new projectors are only running at approximately 50% of their maximum capacity in stock form. The reason is DOT compliance. The projectors are so powerful that running them at full output would exceed the legal brightness limits set by FMVSS 108 regulations. That’s an incredible amount of engineering headroom, and it’s what makes the optional supercharged driver such a game-changing accessory. By swapping the stock driver for the supercharged version, you unlock an additional 30–50% of brightness while maintaining the same projector reliability and warranty coverage.

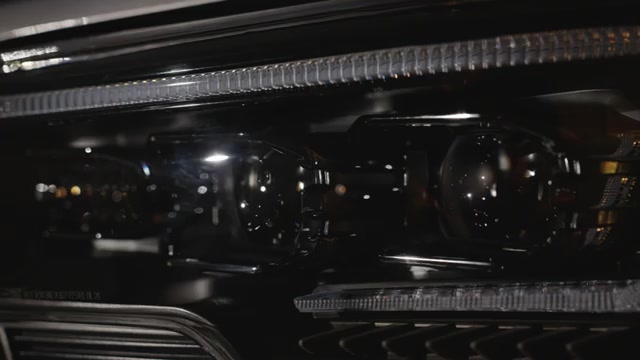

Brightness Numbers: Original XB vs. XB Evo
Numbers don’t lie, and the multi-point testing data paints a clear picture. Using a standardized eight-point measurement system that scores low beam distance, high beam intensity, and width on a 1–10 scale, the XB Evo outperforms the original XB on every vehicle where both have been tested.
On the Toyota Tacoma, the original XB headlights scored an overall rating of 3.8. The XB Evo Hybrid jumped to 6.8, while the full XB Evo with its dedicated high beam assist projector reached 8.0. With the supercharged driver, that climbed to an extraordinary 9.6. The improvement on the Tacoma is particularly dramatic because the original XB’s beam pattern, while functional, was narrow and lacked the distance reach that the new projectors deliver.
Now let’s look at the 09–18 Ram trucks, the original XB scored 5.5 overall, which was already one of the best scores among aftermarket headlights available for that platform at the time. The XB Evo pushed that to 6.9 in DOT-compliant form, and 7.9 with the supercharged driver. While those numbers might seem like a modest jump, the width improvement is especially noticeable. The original XB had a 3.1 width score; the Evo bumps that to 4.1. When you’re driving at night, that extra peripheral illumination makes a real difference for spotting deer, road signs, and intersection hazards.
For Corvette C6 owners, the improvement is equally impressive in context. The original XB Gen 1 (C7 style) scored 3.8 overall. The XB Evo leaped to 5.9, with a width score of 10.5 that’s largely thanks to the new side-shooter LEDs that throw light to the left and right of the main beam. Those scores might seem lower than the truck numbers, but the C6’s aggressive headlight lens angle makes it inherently more challenging to create an optimized beam pattern. In that context, the XB Evo’s performance represents a significant achievement.
Feature Comparison: What the XB Evo Adds
Beyond raw brightness, the XB Evo packs in a host of features that didn’t exist in the original XB lineup. Some of these are convenience upgrades, while others solve real-world problems that XB owners have experienced over the years.

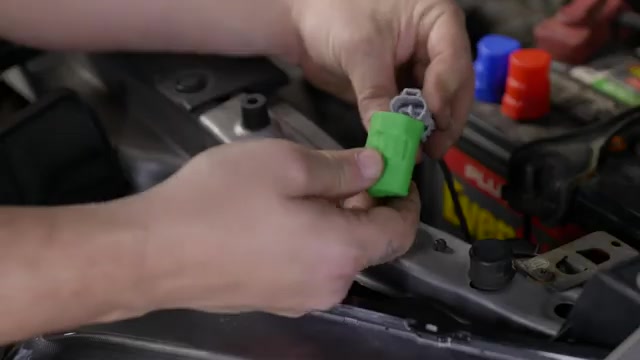

The Signal Swap System
The original XB headlights offered a choice between sequential and standard turn signals, but you had to disconnect or reconnect a wire on the back of the housing to make the change. Additionally, you were locked into either a white or amber DRL depending on which model you purchased. You couldn’t switch between them.
The XB Evo’s signal swap system changes all of that with simple plug-and-play keys. There are four keys included with every full XB Evo headlight, and each one configures a different combination of DRL color and turn signal style. The red key gives you a white DRL with fade-off signals, blue gives you white DRL with sequential signals, green delivers an amber DRL with fade-off, and black provides an amber DRL with sequential signals. Swapping takes about 30 seconds and doesn’t require removing the headlight.
Frost-Free Heating System
This is arguably the most innovative feature in the XB Evo lineup, and it addresses a genuine pain point for anyone who drives in cold climates. LED headlights don’t generate the same heat as halogen bulbs, which means they don’t naturally melt snow and ice that builds up on the lens during winter driving. Over time, this buildup can significantly reduce your visibility.
The XB Evo’s patent-pending frost-free system includes an integrated heater that warms the internal surface of the lens. When temperatures drop below 41°F, you activate it by flashing your high beams four times. The headlight responds with two flashes to confirm it’s engaged, and from there, it automatically maintains the lens temperature to prevent frost buildup. No other aftermarket headlight manufacturer offers this feature.
This is genuinely useful for anyone who lives in northern states or drives through mountain passes in winter.
Improved DRL Optics
If you’ve had the original XB headlights for a while, you might have noticed that the DRL brightness varies depending on your viewing angle. From directly in front, they look great. From the side? The intensity drops off significantly. The XB Evo addresses this with a specialized surface texture on the DRL optics that distributes light evenly regardless of your viewing angle. In person, this makes a substantial difference, especially at car shows or when your friends gather around to check out your setup.
Enhanced UV Protection
Long-term durability was another area where some original XB owners reported concerns, particularly regarding lens clarity over several years of sun exposure. The XB Evo features a new hard coating formulation that exceeds Toyota’s industry-leading UV resistance standard (which is the toughest in the business). This means your lenses should resist yellowing, cracking, and fading significantly longer than the original XB housings.

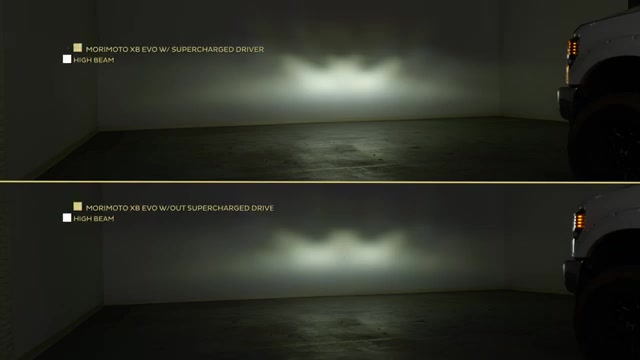

The Supercharged Driver: Is It Worth the Extra Cost?
In a word, yes. The supercharged driver is one of the best value-adds in the entire Morimoto accessory lineup. For a relatively modest additional investment, you unlock the full potential of those already-impressive projectors. On the Tacoma, it took the XB Evo from an 8.0 to a 9.6. On the Ram, from 6.9 to 7.9. On the F-150, it produced scores of 9.4 on low beam and 9.3 on high beam.
Beyond the numbers, the supercharged driver also unlocks the startup animation sequence on the Hybrid models. And importantly, installing the supercharged driver does not void Morimoto’s 5-year warranty. The only caveat is that it pushes the headlights past DOT compliance limits, making them technically for off-road use only in that configuration. However, since you can swap back to the stock driver in minutes, many owners run the supercharged driver daily and keep the stock driver as a backup.
Do You Need to Replace Your Original XBs Right Now?
That depends on your priorities. If your original XB headlights are still performing well, the lenses are clear, and you’re satisfied with the brightness and features, there’s no urgent need to replace them. They were excellent headlights when they launched, and they still outperform most of the aftermarket competition.
However, there are several scenarios where the upgrade makes strong sense, and they’re worth considering carefully. First, if you’ve noticed any lens yellowing or fading on your original XBs, the Evo’s superior UV coating will give you much better long-term durability. Second, if you drive frequently in cold or snowy conditions, the frost-free system alone might justify the switch. Third, if you’ve been wanting to switch between white and amber DRL without buying a whole new set of headlights, the signal swap system solves that instantly.
And finally, if brightness is your priority, the numbers speak for themselves. The XB Evo delivers substantially more light in a more refined beam pattern. Paired with the supercharged driver, it’s in a class by itself. All of this comes at roughly the same price point as the original XB headlights, which means you’re getting significantly more value per dollar.

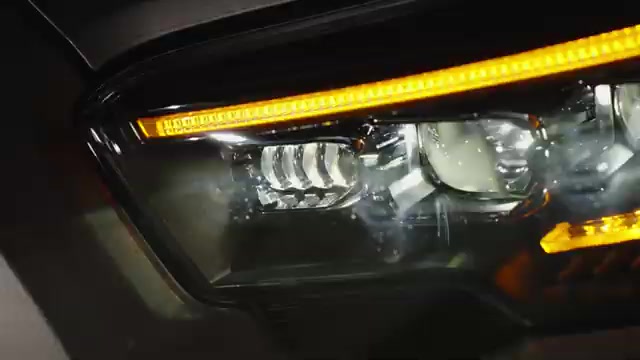

Installation: Seamless Swap
One concern some owners have about upgrading is the installation process. The good news is that the XB Evo is designed as a direct bolt-on replacement for both stock headlights and the original XB housings. It uses the same mounting points (with the same vertical and horizontal adjusters) and plugs into the factory wiring harness without modifications. All necessary adapter harnesses for different trim levels are included in the box, so whether you have the base halogen truck or the top-trim LED model, everything you need is right there.
If you’ve installed the original XB before, the Evo installation will feel very familiar. The process is largely the same, with the addition of the DRL fuse tap harness and the mode selector key. Most experienced installers can complete the swap in about an hour per side.
Source Videos
The data and insights in this article are drawn from extensive testing across multiple vehicles. Watch the full comparison videos for yourself:
- XB Evo Brightness Comparison Overview
- XB Evo Tacoma Headlight Test
- XB vs XB Evo Ram Comparison
- Corvette C6 XB Evo Install & Review
- F-150 XB Evo Complete Review
Frequently Asked Questions
For additional questions beyond what’s covered here, check out our comprehensive Morimoto Headlights FAQ.
Will the XB Evo fit in the same space as my original XB headlights?
Yes. The XB Evo is designed to bolt directly into the same mounting points as both your factory headlights and the original Morimoto XB housings. No cutting, drilling, or modification is required. The adapter harnesses for all trim levels are included in the box.
Is the light output really noticeably different, or is it marginal?
The difference is substantial and immediately noticeable. On the Tacoma, for example, the XB Evo’s overall brightness rating is more than double the original XB. The beam pattern is also significantly wider and reaches further down the road. Most owners report that the improvement is obvious from the first drive.
Can I reuse my original XB headlight housing for anything?
While the original XB housings don’t have any direct reuse with the Evo, many owners sell their well-maintained original XBs on the secondary market. They remain popular headlights, and a good-condition set typically holds its value well.
Do all XB Evo models have the same projectors and brightness?
Yes. The XB Evo Hybrid, XB Evo, and XRGB Evo all use the same bi-LED projectors with identical low beam and high beam output. The differences between models are in features like the frost-free system, signal swap keys, RGB DRL functionality, and the dedicated high beam assist projector (D-optic) found only in the full XB Evo and XRGB models.
What warranty coverage do the XB Evo headlights come with?
All Morimoto XB Evo headlights (including the Hybrid and XRGB versions) come with a 5-year warranty. This warranty remains valid even if you install the supercharged driver. If anything fails prematurely, Morimoto will replace the headlight at no cost. The warranty is backed by Morimoto’s technical support team based in Atlanta, Georgia.
Ready to see the full XB Evo lineup for your vehicle? Browse all Morimoto XB Evo headlights at The Retrofit Source and find your perfect upgrade.
