Introduction
You upgrade your headlights, and everything looks fine at first. Then you drive at night. One beam sits too high. The other drifts sideways. This is where headlight retrofit aiming issues start showing up, and visibility quickly drops while glare increases for other drivers.
The fix is not complicated, but it needs careful work. You must correct the alignment after installation using the proper steps. With the right approach, you can bring both beams back into balance and restore safe lighting performance.
In this blog, we will learn a practical step-by-step method for headlight retrofit, aiming to use simple tools. We will also understand adjustment types, safety rules, and common mistakes. By the end, you will know how to achieve clean, stable, and road-safe headlight alignment. So let’s get started.
What Headlight Retrofit Aiming Means
Headlight retrofit aiming means setting your upgraded headlights in the correct direction after installation. You adjust the beams so they hit the road where they should, not too high and not too low. Most modern projector headlights produce a sharp cutoff line. This line is very sensitive. Even a small movement can change how the light spreads on the road.
That is why proper alignment matters so much. It is the final step that makes your upgrade actually work the way it should. In simple words, you are just making sure your headlights point exactly where they are needed. This helps you see better at night and also keeps other drivers safe from glare.
Why It Matters For Safe Driving
Proper alignment improves your safety in many ways. You can see the road earlier, so you react faster to obstacles, turns, and pedestrians. At the same time, you reduce glare for drivers coming from the opposite side, which makes night driving safer for everyone.
It also improves overall lighting performance. Even expensive headlight kits do not perform well if the beams are not set correctly. Brightness alone is not enough to help you drive safely.
This is exactly where headlight retrofit aiming becomes important. It ensures your headlights are not just bright, but also properly directed. When the aim is correct, your lights work with full efficiency and give you clear, controlled visibility on the road.
Tools You Will Need
You do not need advanced equipment. Basic tools are enough for an accurate setup.
| Tool | Purpose |
| Tape Measure | Measures distance for setup |
| Masking Tape | Mark’s beam points |
| Screwdriver | Adjusts beam direction |
| Socket Wrench | Fine-tuning control |
| Flat Wall | Beam reference surface |
| Level Ground | Keeps the vehicle stable |
Each tool supports proper headlight retrofit aiming by improving accuracy.
Proper Setup Before Adjustment
Start by parking your car on a completely flat surface. This step is very important because even a small slope can affect the results. A stable position gives you accurate alignment. Next, check your tire pressure and keep the car under normal load. Do not overload or keep it empty in an unrealistic way. You want conditions that match real driving.
Now move your car about 25 feet away from a flat wall. Make sure the surface is plain and bright enough to reflect light clearly. Turn on your low beams and let them warm up for a few minutes. This helps the light settle into a stable pattern. This setup creates the right base for precise headlight retrofit aiming and ensures your adjustments are accurate and consistent.

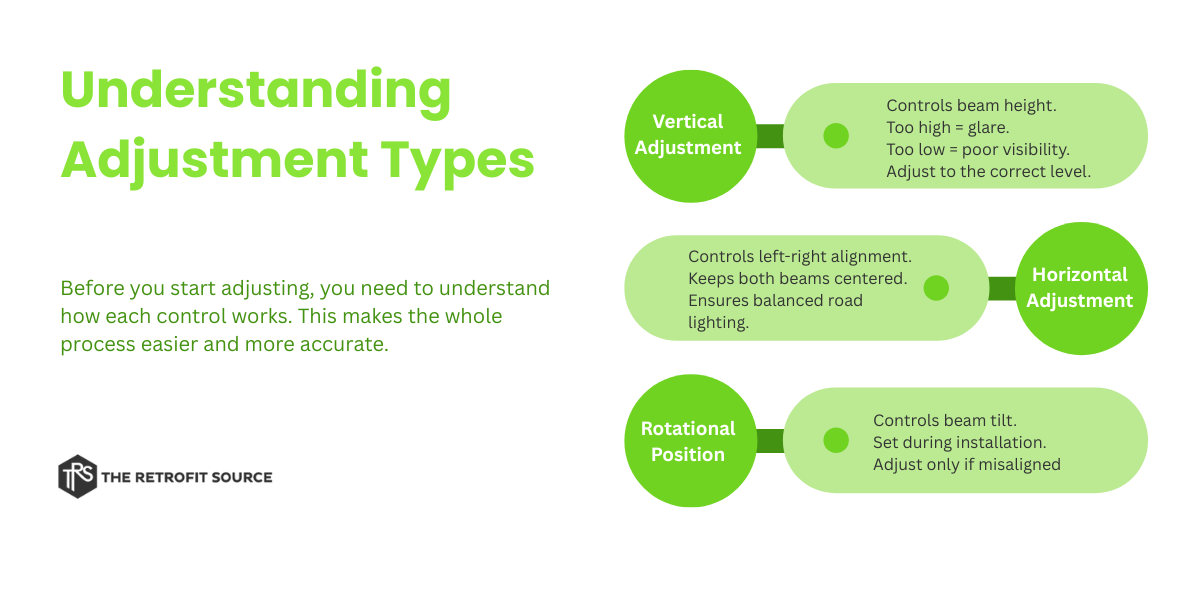

Understanding Adjustment Types
Before you start adjusting, you need to understand how each control works. This makes the whole process easier and more accurate.
Vertical Adjustment
This controls the height of your beam. If the beam sits too high, it will create glare for other drivers. If it sits too low, you lose road visibility. So, you adjust it carefully until the beam hits the right level.
Horizontal Adjustment
This controls the left and right direction of the beam. It helps both headlights stay centered and aligned with each other. When this is correct, the light looks balanced on the road.
Rotational Position
This is usually set during installation. It controls the tilt of the beam pattern. In most cases, you do not need to change it again unless something was installed incorrectly.
When you understand these three adjustments, you can perform headlight retrofit aiming with much better control and accuracy.
Step-By-Step Adjustment Process
Step 1: Mark Reference Points

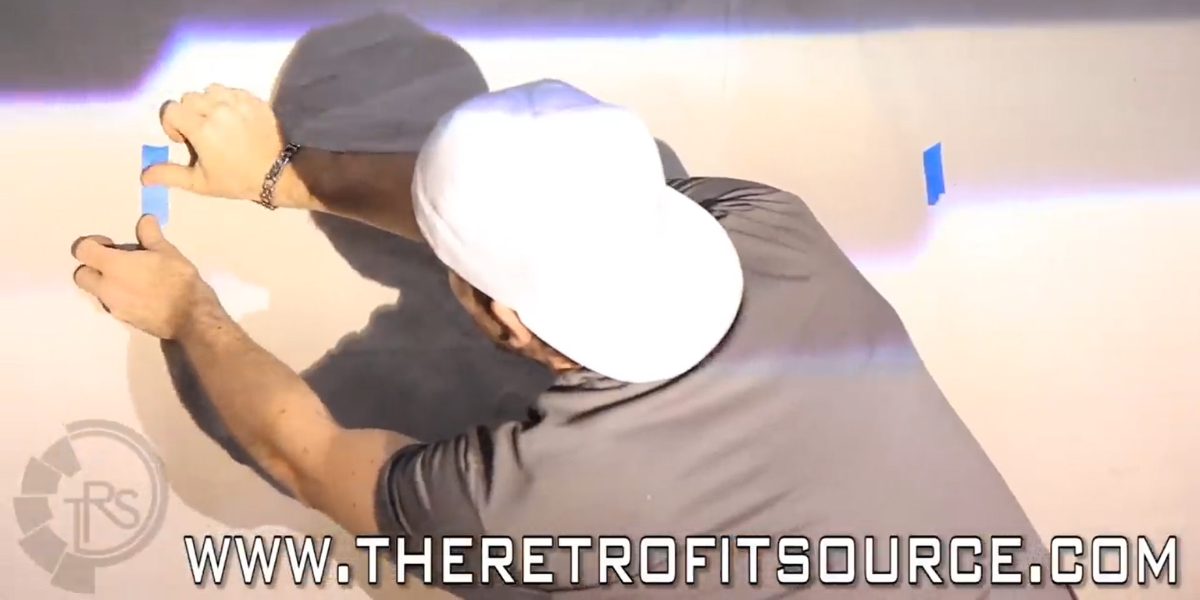

Start by using masking tape on the wall. Mark where both headlights hit. Also, mark the centerline of your vehicle. This gives you a clear visual guide for alignment.
Step 2: Measure Beam Spacing

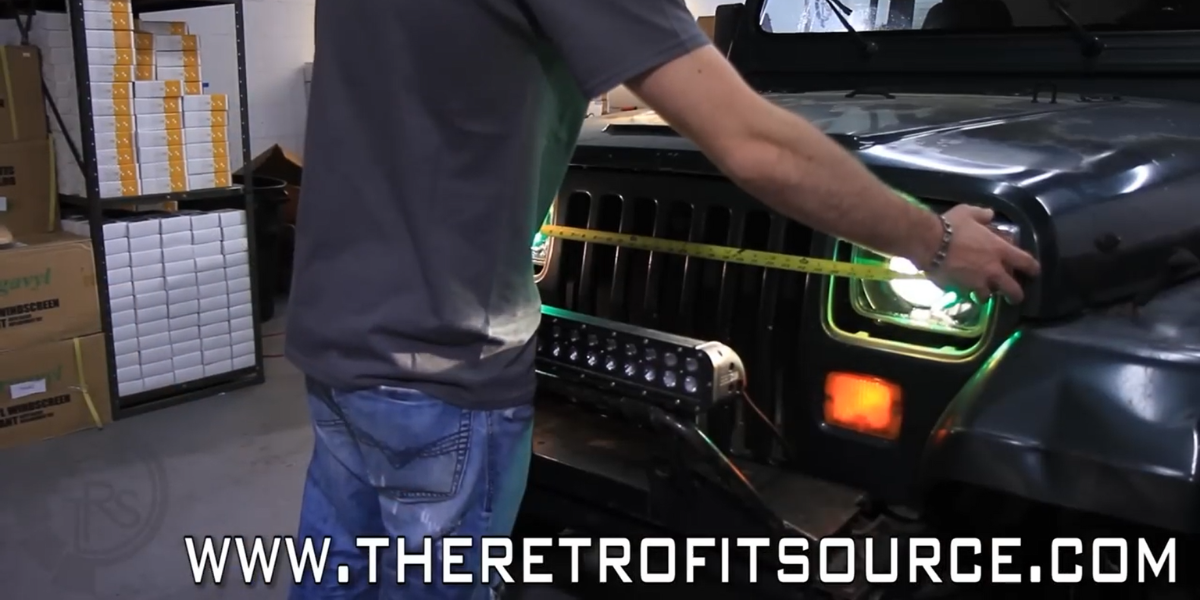

Now measure the distance between both headlights on your car. Then transfer that same distance onto the wall. This helps you match real vehicle geometry with the beam pattern for better accuracy.
Step 3: Set Height Reference
Park your car about 25 feet from the wall. Now set a height reference. The beam cutoff should sit slightly below your side mirror height. This helps prevent glare and keeps the light focused on the road.
Step 4: Adjust Beam Height

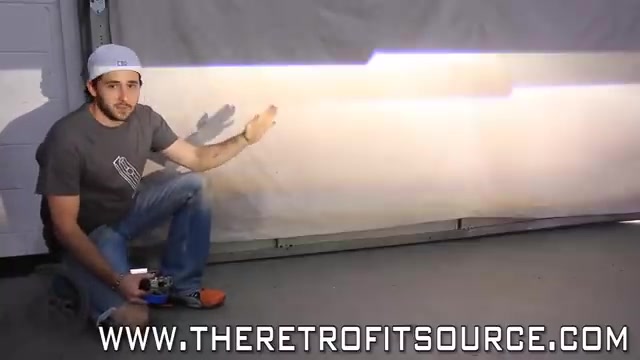

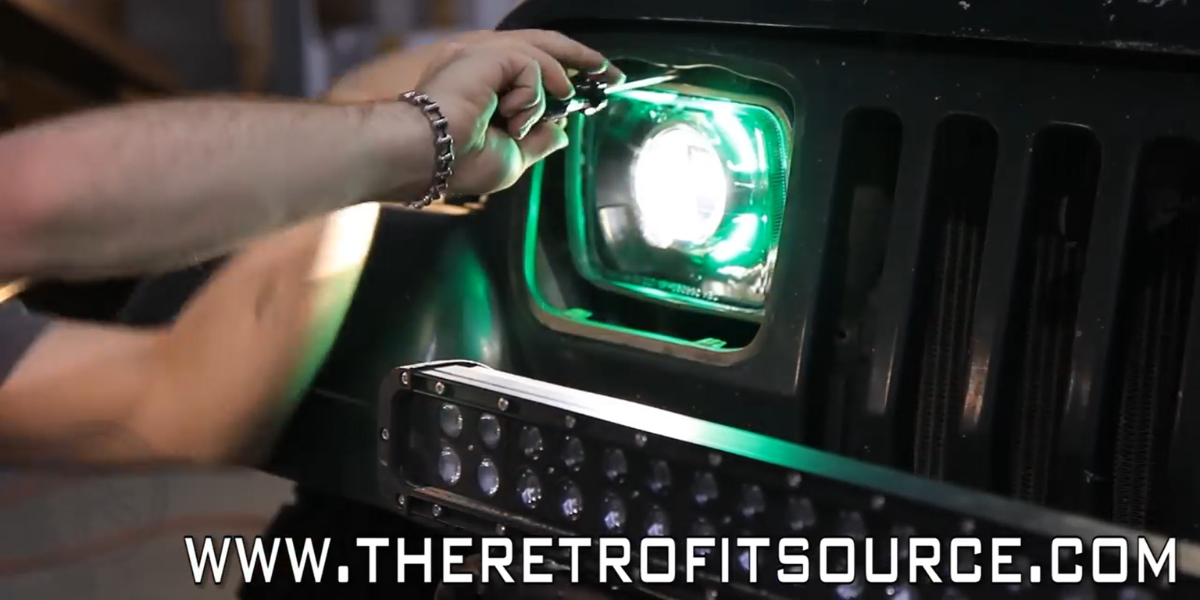

Now use a screwdriver and slowly adjust the vertical screws. Raise or lower each beam until it matches your height mark. This step plays a major role in headlight retrofit aiming, so move slowly and check often.
Step 5: Adjust Side Alignment

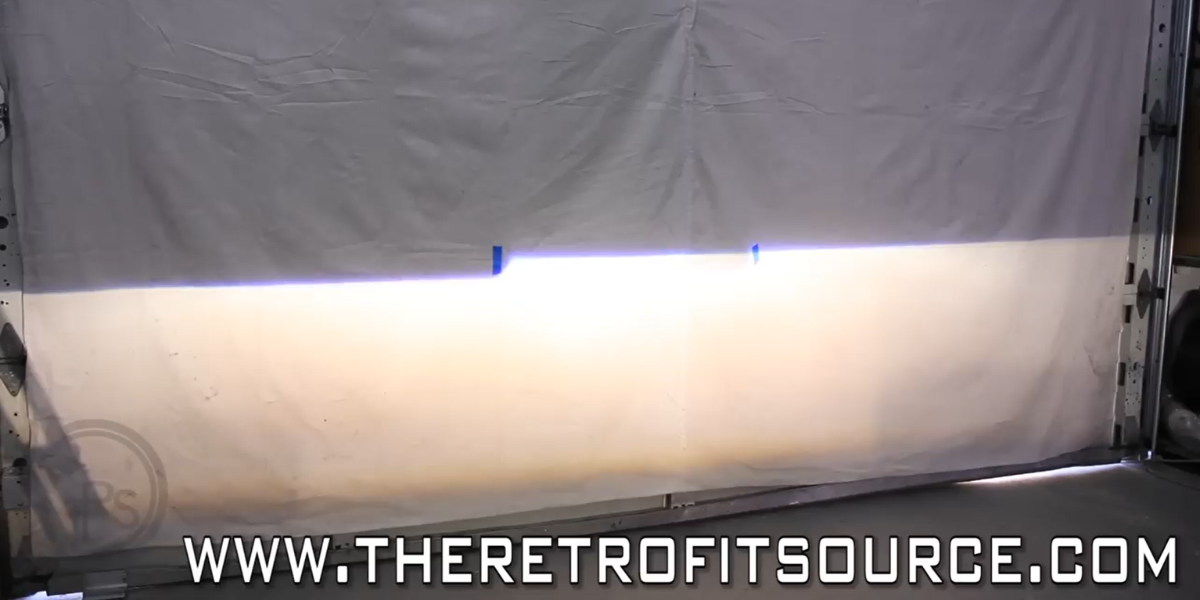

Next, adjust the left and right direction. Make sure both beams stay centered and evenly spaced. The goal is symmetry, so the road lighting looks balanced.
Step 6: Final Inspection
Finally, step back and look at both beams together. Check height, spacing, and overall balance. Make small corrections if needed. This final check confirms proper headlight retrofit aiming before you drive.
Video credit goes to the YouTube channel – TheRetrofitSource
Beam Pattern Types You May See
Sharp Cutoff Projectors
These produce a clean and straight horizontal line. They are the easiest to work with during alignment because the beam edge is clearly visible. You can quickly judge height and direction with this type.
Step Cutoff Projectors
These include a small upward step on one side of the beam. This design helps improve the visibility of road signs and roadside objects. However, you still need careful adjustment to keep the beam balanced.
Wide-Spread Projectors
These distribute light over a larger area. They improve side visibility, but they also increase the risk of glare if not adjusted properly. Because of this, they need a more precise setup and careful tuning during headlight alignment.
Common Mistakes You Should Avoid

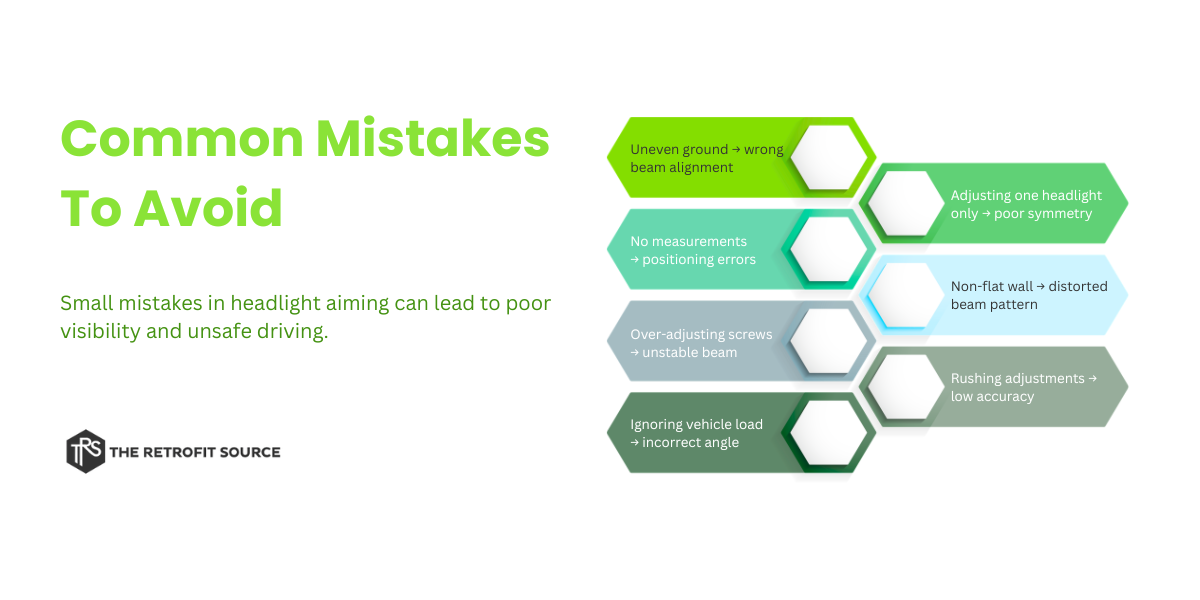

Many people rush the process and end up with poor results. To get proper alignment, avoid these mistakes:
- Working on uneven ground: this leads to incorrect beam alignment.
- Skipping measurements: this causes scaling and positioning errors.
- Over-adjusting screws: this makes the beam unstable and inconsistent.
- Ignoring vehicle load conditions: this changes the natural beam angle.
- Not checking both headlights together: this breaks symmetry.
- Using a non-flat wall surface: this distorts the beam pattern.
- Rushing adjustments without small step-by-step changes: this reduces accuracy.
Avoiding these mistakes will make the headlight retrofit aiming much more accurate and reliable.
When You Should Recheck Alignment
- Always check after installation.
- After suspension changes or accidents.
- After replacing bulbs or projectors.
- During periodic maintenance checks, vibration can slowly affect alignment.
Safety And Legal Importance
Incorrect LED headlight alignment can create serious problems. It can cause glare for oncoming drivers and increase the risk of accidents, especially at night. In many regions, it can also go against road safety rules and vehicle inspection standards.
When you set your headlights correctly, you protect yourself and everyone else on the road. You improve visibility without disturbing other drivers. This is why proper headlight retrofit aiming is not optional. It is a basic safety step that should always be done after installation and checked regularly.
Troubleshooting Poor Results
- Check mounting: ensure everything is tightly fixed.
- Inspect bulb seating: confirm it is properly installed.
- Verify housing alignment: check for any tilt or movement.
- Recheck wall distance: keep the correct setup distance.
- Confirm flat ground: avoid an uneven parking surface.
Fixing these usually solves most issues before repeating the headlight retrofit aiming.
Conclusion
Setting up your headlights properly is not just a technical job. It directly affects how safe and comfortable you feel while driving at night. Good alignment helps you see the road clearly without disturbing other drivers with glare. The key is to take your time. Do not rush the process. Make small adjustments, measure carefully, and always check both headlights together so they stay balanced.
When everything is done correctly, your lights will feel smooth, focused, and reliable. Every night, driving becomes safer and more confident for you and everyone else on the road.
FAQs
What Is Headlight Retrofit Aiming for?
It is the process of adjusting headlights after installation to ensure correct beam direction.
Why Is Headlight Retrofit Important?
It improves visibility and prevents glare for other drivers.
Can I Skip the Headlight Retrofit Aiming?
No, skipping it reduces safety and performance.
How Often Should I Do a Headlight Retrofit Aiming?
Check every few months or after suspension changes.
What Tools Do I Need?
Basic tools like a tape measure, a screwdriver, and a flat wall are enough.
What Happens If Beams Are Misaligned?
You get poor visibility and increased glare.
Is Headlight Retrofit Aiming Hard?
No, it is simple if you follow the steps carefully.
Can Road Vibration Affect Alignment?
Yes, it can slowly shift beam direction.
What Is The Best Distance For Setup?
Around 25 feet from a flat wall works best.
Do Both Headlights Need To Match
Yes, symmetry is essential for safe driving.
